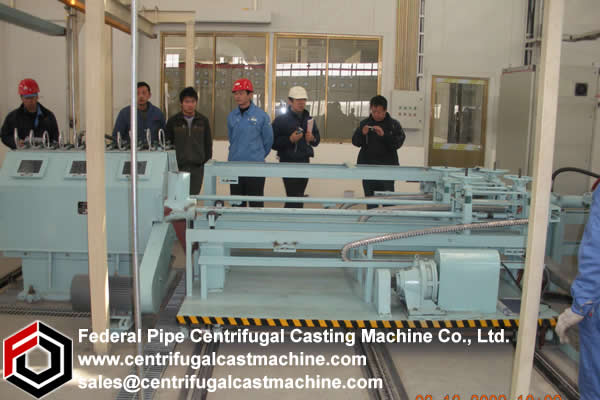

Centrifugal casting machine is the main production equipment
centrifugal casting machine is the main production equipment for the production of cylindrical castings by centrifugal casting method. The centrifugal force produced by the high-speed rotation of the mold causes the molten metal poured into the mold to solidify in the inner wall of the mold to achieve filling and solidification Of a casting method. The internal cavity of the mold can be designed according to the different castings. The best centrifugal inertia force with the best alloy liquid flow rate is the key to cylindrical products such as casting cylinders. At present the widespread use of centrifugal casting machine in the centrifugal inertial force is difficult to meet the requirements of the product defective high. Second, the need for artificial high temperature conditions, open the mold before the baffle on the locking pin, the product stripping, affecting the work efficiency.
The utility model discloses a centrifugal pouring machine inertia clamping device, the front baffle movement is installed in the front of the mold body, the front end of the mold body on the outer surface of the fixed installation of the ring, the package ring evenly distributed three connecting seat, Each connecting seat is connected with the connecting member of the hook at the front end by the bolt, and the connecting end is fixedly connected with the hammer. It solves the problem of low efficiency of the existing technology, has the advantages of simple structure, large centrifugal inertia force, easy mold release and improved product quality, and is suitable for casting production of cylindrical products such as cylinder liner.
In order to solve the above-mentioned technical problems, the centrifugal pouring machine inertia clamping device of the utility model comprises a mold body and a front bobbin which are movably mounted on the front part of the mold body and the outer shell And the connecting seat is evenly distributed with three connecting seats, each of which is movably connected with a connecting member having a hook at the front end by means of a bolt, and the connecting end is fixedly connected with a hammer.
