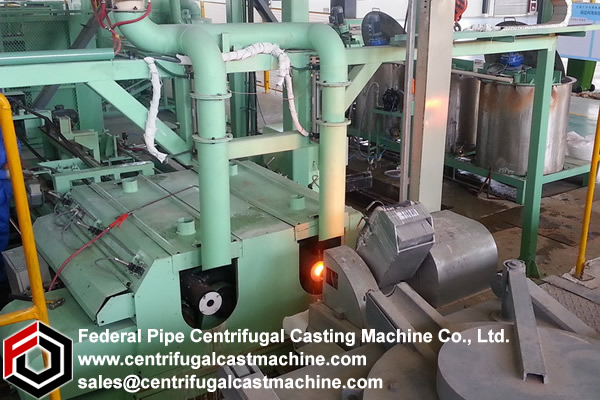

Automatic 12 - station centrifugal casting machine
A fully mechanized 12 - position centrifugal casting machine for mechanical engineering. In the invention, the input end of the second motor, the reducer and the cam gyration is integrated with the input end of the cam, and the large plate is arranged on the main shaft. The axial direction of the disk is fixed by the first locking nut, The main shaft is located on the front bearing and the rear bearing, the circumference of the market is 12 sides, for the installation of 12 centrifugal casting machine, the first motor is located in the end of the market, the pulley is located in the tail of the centrifugal casting machine The power of the first motor is transmitted from the three triangular belts to the centrifugal casting machine. The power line of the first motor is connected with the inner hole of the main shaft to the slip ring mechanism, and the front end of the centrifugal casting machine is provided with a cylinder mold. The invention greatly changes the working environment of the pouring workers, reduces the labor intensity of the workers, improves the safety factor of the hot working workers, reduces the burden on the staff and improves the quality and the production of the products.
(1), a V-belt (2), a first motor (3), a first locking nut (4), a cylinder mold (9), a centrifugal pouring (12), a main shaft (13), a damping mechanism (14), a rear housing (15), a reducer (16), a second motor (57), a shaft (18), a slip ring mechanism (19), a cylinder ejection cylinder (20), a brake cylinder (21), a cylinder liner manipulator (22), a mold cleaning and (24), a spray coating device (25), an infrared liquid level controller (26), a pouring trolley (38), wherein the second motor (57), the reducer (16) (12) is provided on the main shaft (13), and the axial direction of the large plate (12) is passed through the first locking nut (13) (14) is also provided on the main shaft (13), the main shaft (13) is provided on the front bearing seat (11) and the rear bearing seat (15), the circumference of the large plate (12) (10), the first motor (3) being provided on the end face of the large disc (12), the pulley (1) being provided at a distance (10), the power of the first motor (3) is transmitted from the vertex belt (2) to the centrifugal casting machine (10), and the power supply line of the first motor (3) is transmitted to the centrifugal casting machine (19), the front end of the centrifugal casting machine (10) is provided with a cylinder mold (9), the infrared liquid level controller (26) is arranged in the vicinity of the pouring trolley (38) (22), the mold cleaning and the asbestos board mechanism (23), the door panel device (24), the spraying device (25), the sprayer (25), the sprayer (20), and the brake cylinder (21) is sequentially arranged in the direction in which the large disk (12) is rotated.
