centrifugal casting machine tube
centrifugal casting machine tube
1.Standard:ANSI,ASTM,ASME ,GB
2.Material:Alloy Cr25Ni35-Nb+MA,HK40 etc
3.OD:50-1000mm,Length:<5000mm
4.Process:centrifugal casting
5.Quality:appearance of smooth,can work under presure for long time,advanced testing equipment to ensure thye quality,
6.Packing:wrapped in bundles by steel strips or as customers' requirement
7.Delivery time:30 to 60 days after we signed SALES CONTRACT.
8.Port of departure:
9.Certification:ISO9001:2008
10.Payment:L/C,T/T
11.Application:used for primary reformer of synthetic ammonia in fertilizer manufacturing.

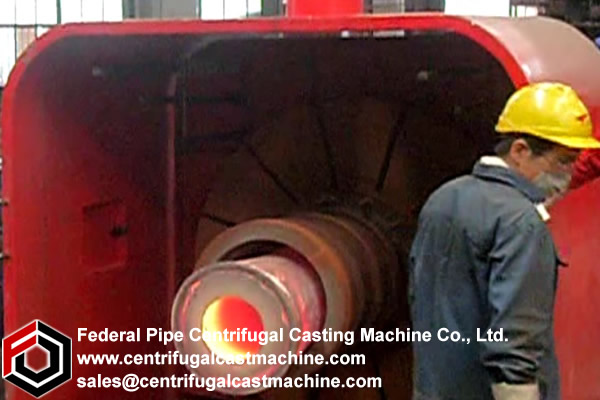

Centrifugal Casting machine INTRODUCTION
Reformer tubes normally used in the refining, petrochemical and fertilizer industries are manufactured by the centrifugal casting process and heat-resistant austenitic alloys such as HK -40, HP-40, and HP -Niobium modified materials. A design life of 100,000 operating hours has been the normal time-based criteria for considering retirement of tubes.
Centrifugal Casting machine Primary reforming
The hydrocarbon steam reforming process is the principal industrial process used to manufacture synthesis gas for the production of ammonia, hydrogen and methanol. The heart of this process is the tubular primary reformer where the hydrocarbon feed plus steam is catalytically reacted to produce the synthesis gas. The standard primary reformer system is the tubular reformer where the feed stream passes over the catalyst packed in multiple banks of externally heated tubes. The tubes are heated in a refractory lined firebox which may be top, side, or bottom fired. The feed flow can be down flow or up flow through the tubes. With improvements in tube metallurgy, primary reformers operate at pressure up to 60 bar and tube wall temperatures up to 1000°C. The average heat flux may be as high as 30,000 Btu/hr.ft2. The feedstock may vary as natural gas, LPG, or naphtha.
